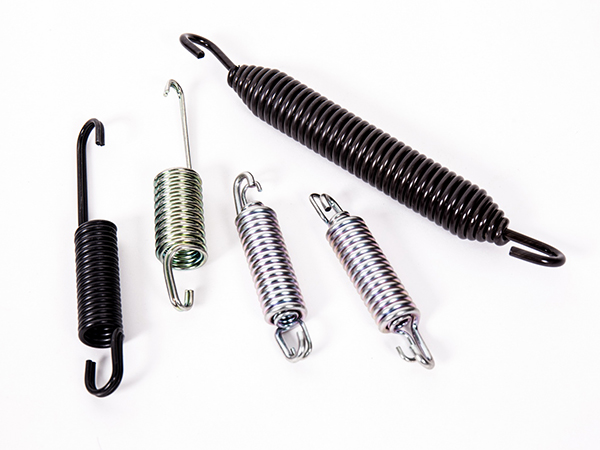

Tension Spring Design

Tension springs are designed to absorb and store energy as well as create resistance to a pulling force. It is initial tension that determines how together the tension spring is coiled. This initial tension can be manipulated to achieve the load requirements of your particular application. All tension springs are wound with an initial tension force which offers a small deflection load for secure installation “holding”. The initial tension is equal to the minimum force required to separate adjacent coils.(Each spring is of the constant diameter type with a variety of hook/loop styles.)

Data Required for Tension Springs

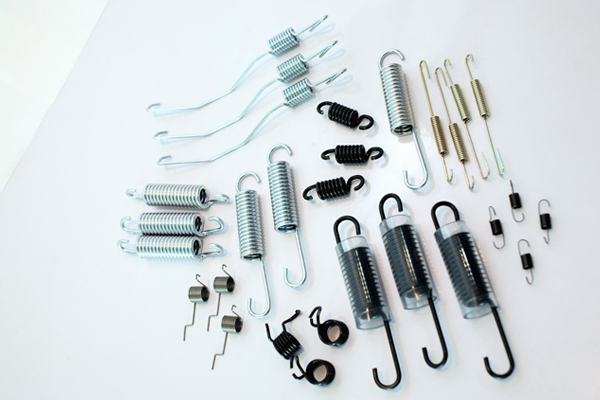

tension spring03

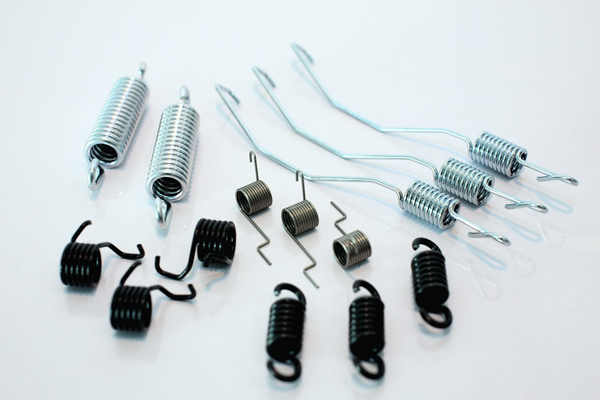

tension spring01
